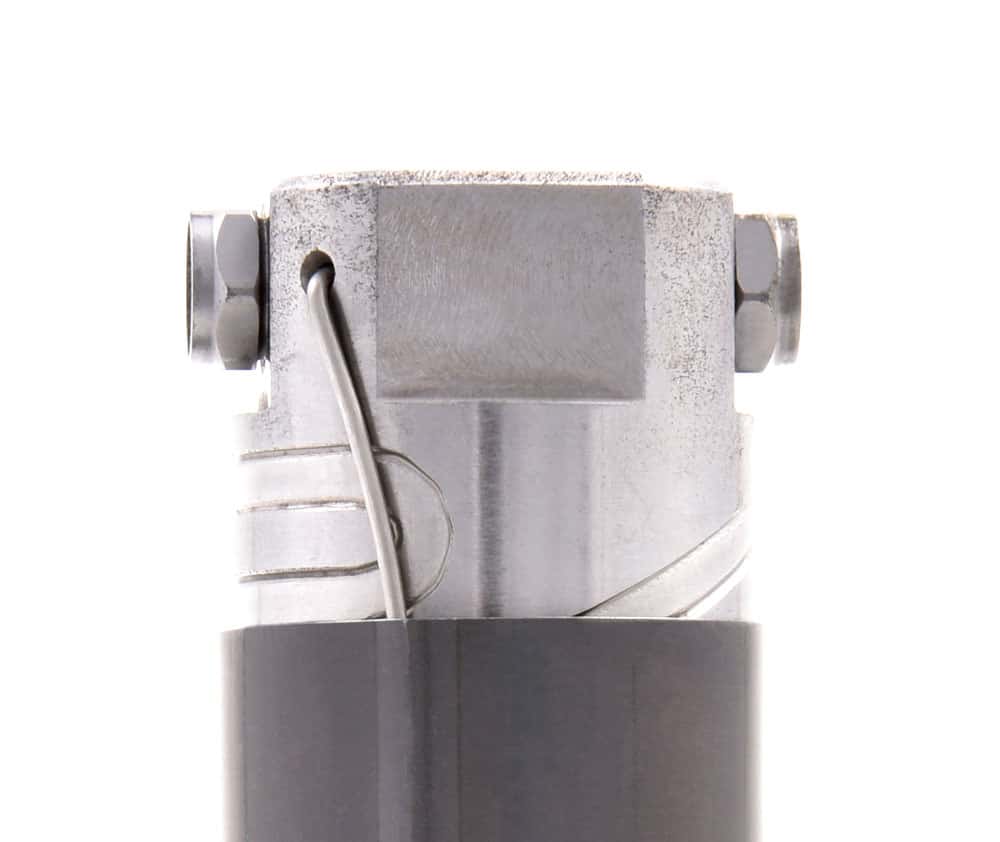

Mold-Masters Tit-Edge


OUR SIMPLEST AND MOST ECONOMICAL SIDE GATING SOLUTION


Description

Simultaneous direct side gating solution of up to 4 cavities per drop. A simplistic design that reduces machining complexity and cost. Ideal for thick wall applications such as large medical syringe barrels, specialty packaging, writing instruments or other similar parts.

FEATURES

Thermal Gates (C&E Type)

  • Excellent gate quality.
  • Gate onto vertical walls or ribs.

Master-Series Nozzles

  • Excellent thermal profile (10% Max Variation*)
  • Proven processing capabilities.
  • Minimizes scrap.
  • Low energy consumption.

Brazed Heater Technology

  • Superior thermal performance and balance.
  • Unbeatable reliability maximizes uptime.
  • Eliminates spare heater costs.
  • 10 year warranty available.

iFLOW Manifold Technology

  • Industry leading mold balance.
  • Rapid color change performance.
  • Reduced stack height.

*Based on internal lab testing.

Specification

Additional Info

  • Compatible Resins: Amorphous, Crystalline and Others.
  • Cavities per Drop: 2-4
  • Tip Angle Range (from Horizontal): 0° only
  • Nozzle Length Range: 23 – 153mm
  • Tip to Tip Distance: 20 – 30mm
