C-SERIES

Overview

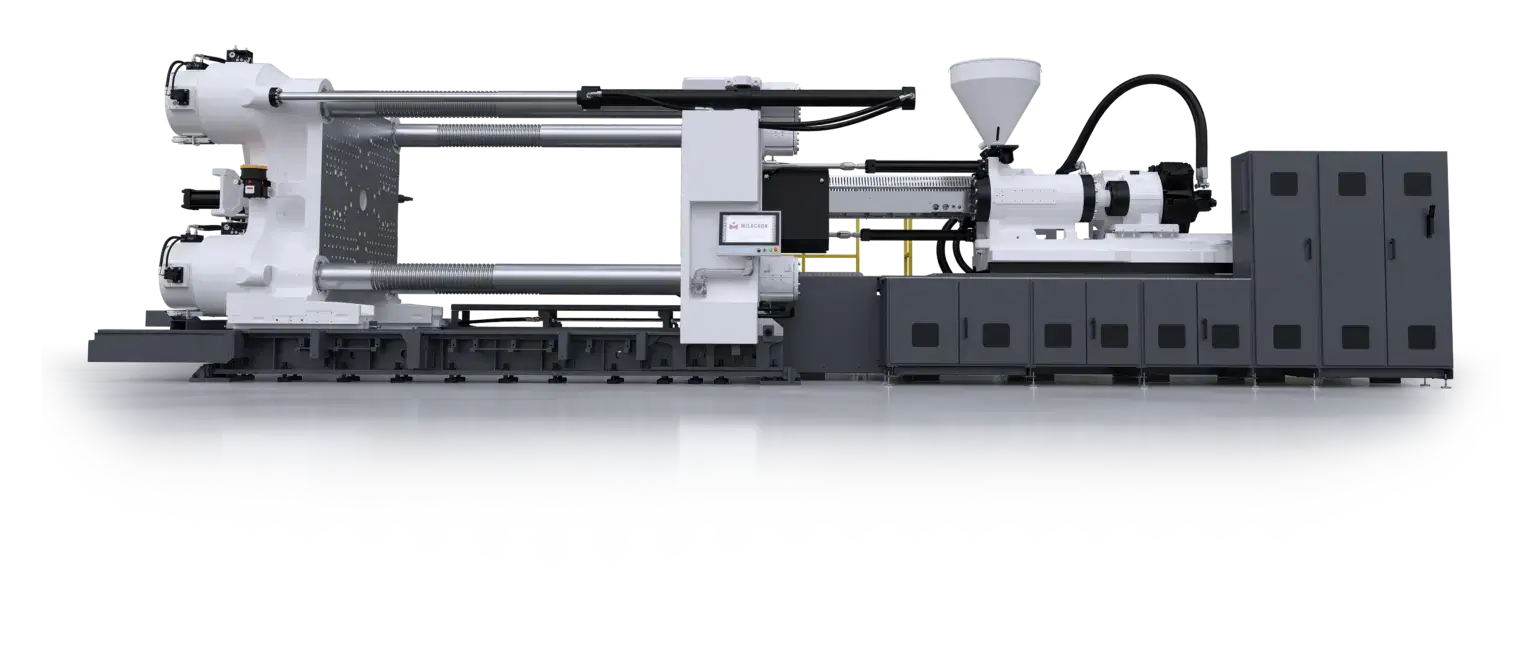

C-Series is the advanced two-platen technology for large part molding, ranging from 1300-6100 Metric ton.

C-Series and its wide range of options caters to various applications and segments from precision, efficiency, and versatility in plastic manufacturing.

Milacron’s C-Series is the latest offering in our industry-leading large tonnage injection molding technology, designed to deliver the highest performance, precision, and flexibility. Enhanced machine specifications offer improved reliability, higher max mold weights, and faster clamp speeds. The C-series is powered and driven by the highly reliable and energy-efficient Fanuc servo motor power pack. C-Series is a state-of-the-art machine which is environment-friendly because of its reduced footprint, oil requirement, dry cycle time, and reduced power consumption.

A variety of clamp, injection unit, and screw and barrel configurations are available to optimize the production of a large range of parts.

This is a true global machine in design, functionality and safety requirements. The C-Series is a large-part powerhouse that meets the demands of all the major market segments.

Additional Info

Driven by industry-proven FANUC hydraulic servo-motors, the C-Series operates with a high degree of reliability at relatively lower decibel levels . FANUC’s motor system also offers increased accuracy and precision by rotational control to a fraction of a degree. These motors are designed for demanding and diverse applications.

 The highly efficient servo system decreases energy consumption by generating power during deceleration. The servo-motor also stops intermittently during the cycle to save energy. The FANUC servo system can extend the life of machine components by reducing energy flow and friction while also extending the life of oil and lubricants used in the machine by design.

Features

The C-Series comes with predefined configurations that can increase the speed, accuracy, and capability in the large part market. Our integrated lock nut/tonnage system uniformly distributes clamp force and reduces mold wear while offering advanced control and improved parallelism.

The C-Series features a rigid platen that matches center tonnage deflection and can accept increased max mold weights per platens. The twin-cylinder injection unit distributes force evenly across the screw centerline and standard injection unit swivel for easy screw removal.

Available with The MOSAIC+ 21” multi-touch controller delivers fast processing, extensive data collection, and automation integration. Featuring a configurable layout, remote camera interface, Windows OS, self-diagnostic capabilities, and multi-level data protection, this solution enhances manufacturing reliability and adaptability.

• Shot Weight Consistency, Repeatability, and Reproducibility
• Start-Up Rejection Limited to 2-3 Shots
• Superior Energy Efficiency §[EUROMAP 60.1 (Cycle I) – 8+ standards]
• Best-in-Class Dry Cycle Time
• Maximum Mold Weight Capacity
• User-Friendly Controller §[21” Inch Controller with Plus Screen Feature]
• High-Reliability Fanuc Motors and Drives
• ANSI-Certified Safety Features
• M-Powered enabled, a Suite of IIoT Solution
• Project Execution Capabilities
