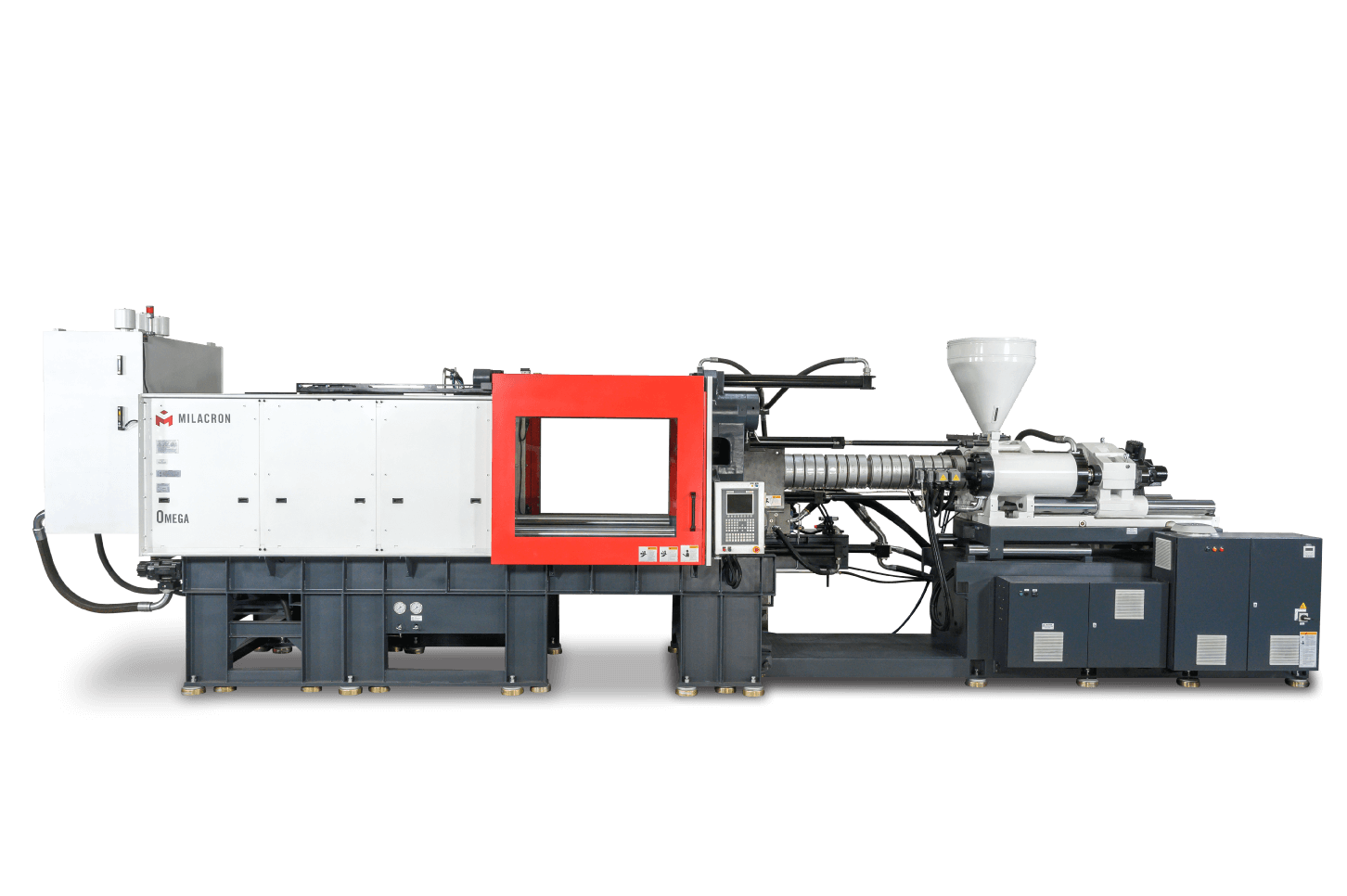

Omega


The Robust Performer


* This product is not available in Americas, Europe, Asia.

Description

omega-hydraulic

Unique Prefill Cylinder Design

  • Fast Tonnage Built-up Time



Large Ram Diameter

  • Provides Uniform Force Distribution across Platen
  • Provides Excellent Mould Squareness & Parallelism
  • Reduces Mould Wear



Generous Mould Space – Accommodates Large Moulds

Wide Skates for Platen Supports

  • Reduced Platen Deflection
  • Enhanced Life of Tie-bars
  • Higher Mould Carrying Capacity



Wide Skates for Platen Supports

  • Reduced Platen Deflection
  • Enhanced Life of Tie-bars
  • Higher Mould Carrying Capacity



Closed Loop PID Temperature Control

  • Provides Precise Temperature Control
  • Excellent Process Control & Stability



Endura-II – Advanced User Friendly Control

  • Ergonomic Layout
  • High Speed Microprocessor
  • Direct Access Menu Keys
  • Graphical Presentation of Machine Features
  • Self Diagnostic & Fault Finding Capability
  • Parameter Entry in Absolute Value
  • Central Monitoring System
  • Statistical Process Control (SPC)



Twin Cylinder injection Unit

  • Uniform Load Distribution across Screw Centerline



Finite Element Analysis (FEA) for Machine Components

  • Provides Maximum Strength to Weight Ratio



Mono Seal & No Piston Rings

  • Long Life of Sealing System, Ease of Maintenance



Fully Guided Knock Out Bar

  • Provides Multi Point Ejection & Even Ejection Force



Hydraulic Valves Mounted Close to Actuators

  • Fast Response From Actuator to Control Unit

Specification

Models

  • Omega 100
  • Omega 150
  • Omega 200
  • Omega 250
  • Omega 350
  • Omega 450
  • Omega 550
  • Omega 660
  • Omega 775
  • Omega 910

Clamp

  • Hollow Headless Ram with Mono Seal & No Piston Rings
  • Large Prefill Designed for Fast Tonnage Build-up
  • Rapid Traverse Cylinders
  • Conical Strain Rod Nuts & Controlled Stress on Tie Rods
  • Adjustable moving Platen Skates
  • Rigid Cast Platens with FEA
  • Adjustable Pressure setting of Closing & Opening Stage
  • Proportional Speed Control with 5 Closing & 5 Opening Speed
  • Adjustable 2 Stage Mould Safety Pressure & 1 Stage Speed
  • Position Based Ramping for Accurate Position Switching – Precise Speed & Pressure Control
  • Linear Position Transducer for Accurate Clamp Position Control
  • Sensitive Mould Protection with Try Again Circuit
  • Stage Wise Actual Time Display
  • Insert Moulding Program

Injection

  • 6 Stage Injection Velocity & 15 Stage Injection Pressure Profile
  • 5 Stage Screw Speed & 5 Stage Back Pressure Control (Setting) through Screen
  • Digital setting of Extruder RPM & Digital Read out of Actual RPM
  • Wide Choice of Injection Units with A-B-C Screw/Barrel Combinations
  • Easy Injection Unit Swivelling
  • Switch Over from Fill to Pack based on Position or Time
  • Linear Position Transducer for Accurate Injection Position Control
  • Injection Decompression Before / After Refilling or Both
  • Semi-Auto Purge, Cold Slug removal & Intrusion Moulding Programs
  • Chequered Plate below Purge Area
  • Sprue Break with Timer
  • Injection start, Suck-back & Melt Decompresion – Delay Timer
  • Graphically Adjustable Alarm Bands for Injection Pressure
  • Sliding Hopper
  • Nozzle Contact Force by Pressure Switch

Controls

  • 22 Parameter Monitoring for last 1000 cycles with Graphics
  • 10.4″ TFT Color Display with Alpha – Numeric Keypad
  • Actual Injection Speed & Pressure Graph Display
  • 80 Mould Data Storage
  • Configurable Multilevel Password with Operator’s Name
  • Graphically Presentation of Hourly Production
  • Customized Setup Menu
  • High / Low Limit Display for Each Adjustable Parameter
  • I / 0 diagnosis – Analog & Digital
  • Timer Precision in 0.01 Second
  • Change Log Menu: logs last 100 Set Points Changes with Time & Date
  • Statistical Process Control (SPC) with Graphics
  • Process Mode: Functions with its Co-fuctions on a Single Key Press
  • Note Pad & Maintenance Scheduling
  • Freely Programmable Smart Outputs
  • Over View Screen with Graphical Display of Machine Functions
  • Soft Keys for Fast Access of Select Menus
  • Auto shut down
  • Visual & Audible Alarm
  • 1000 Alarm History with Date & Time Log
  • Printer Interface with USB Port

Options

  • Air Ejection
  • Hydraulic Core pull
  • Feed Throat Temperature Control
  • Oil Temperature Control
  • Part Drop Detect for Single Cavity
  • Water Battery with Temperature Indicator
  • Water Manifolds
  • Robot Interface (SPI / EUROMAP)
  • Extra Heating Zones
  • Ejector on Fly
  • Jam Bar
  • T-slot Platens
  • Extended Daylight with Ram Spacer
  • Eject Retract Limit Switch Verification
  • Bimetallic Barrel & Hardened / Coated Screw
  • AC Variable Frequency Drive
